GYP-GRIP Insulation Fasteners
Drywall available now. Wood, metal and concrete launching soon.
Patent Pending — USA & CanadaGYP-GRIP comes in four variants, each designed for a specific substrate. Every unit is a one-piece molded fastener with an embedded captive screw, an ACME milling tip for self-drilling through foam, and a snap-on thermal-break cap. All four install the same way — see the three-step installation guide or how GYP-GRIP compares with gas-actuated fasteners. Choose the right variant below.

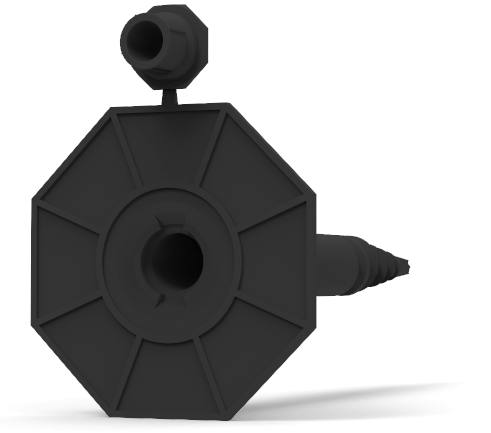

DrywallGYP-GRIP Drywall
Designed to fasten exterior insulation directly to drywall sheathing without locating a stud. The ACME milling tip drills its own hole through the foam and the embedded drywall screw engages the sheathing.
| Embedded Fastener | #12 Drywall Screw |
|---|---|
| Substrate | Gypsum / drywall sheathing |
| Insulation Shaft Length | 4 inch (101.6 mm) |
| Drive | T40 Torx — fits any cordless drill |
| In Every Box | 8" T40 Torx bit |

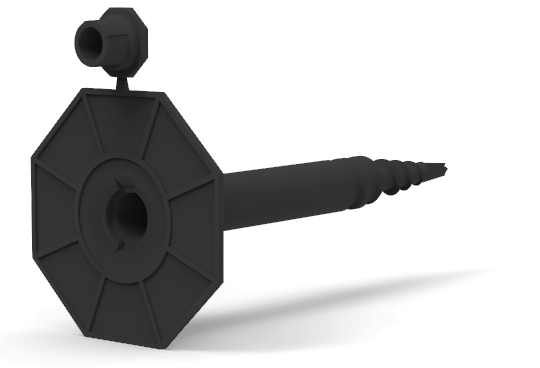

WoodGYP-GRIP Wood
Fastens insulation directly to wood studs or plywood/OSB sheathing. The embedded wood screw threads into the timber substrate.
| Embedded Fastener | #12 Wood Screw |
|---|---|
| Substrate | Wood studs, plywood, OSB sheathing |
| Insulation Shaft Length | 4 inch (101.6 mm) |
| Drive | T40 Torx — fits any cordless drill |
| In Every Box | 8" T40 Torx bit |
MetalGYP-GRIP Metal
For steel-framed construction. The embedded self-drilling screw is designed to drive into metal studs or liner board without pre-drilling, and the plastic body helps limit heat transfer to the metal frame.
| Embedded Fastener | #12 Self-Drilling / Self-Tapping Screw (SD3) |
|---|---|
| Substrate | Steel studs, metal liner sheathing |
| Insulation Shaft Length | 4 inch (101.6 mm) |
| Drive | T40 Torx — fits any cordless drill |
| In Every Box | 8" T40 Torx bit |
ConcreteGYP-GRIP Concrete
Uses a #14 masonry screw embedded in the one-piece unit, for fastening insulation to poured concrete, concrete block and ICF walls.
| Embedded Fastener | #14 Concrete Screw |
|---|---|
| Substrate | Poured concrete, concrete block, ICF walls |
| Insulation Shaft Length | 4 inch (101.6 mm) |
| Drive | T40 Torx — fits any cordless drill |
| In Every Box | 8" T40 Torx bit |
